SE6-66HBD 695-715W
TN Solar Co., Limited|
Price per Pièce
|
|||
| Minimum Order | 1 Pièces | 2 Pièces | 3+ Pièces |
| SE6-66HBD 695 | €34,4 | €34,0 | €33,7 |
| SE6-66HBD 700 | €34,4 | €34,0 | €33,7 |
| SE6-66HBD 705 | €34,4 | €34,0 | €33,7 |
| SE6-66HBD 710 | €34,4 | €34,0 | €33,7 |
| SE6-66HBD 715 | €34,4 | €34,0 | €33,7 |
| Technologie: | Bifacial, HJT |
|---|---|
| Gamme de Puissance: | 695 ~ 715 Wp |
| Région: |
Chine
|
Description:
HJT 2.0 Technology
-0.26%/°C Pmax temperature coefficient
SMBB design with Half-Cut Technology
Up to 90% Bifaciality
Sealing with PIB-based sealant
Caractéristiques du Produit
| Type | Monocristallin | |||||
|---|---|---|---|---|---|---|
| No. de Modèle |
|
|||||
| Garantie | ||||||
| Garantie | 25 Années | |||||
| Garantie de Puissance | 25 ans à 90%, 30 ans à 88% | |||||
| Caractéstique Electrique (STC) | ||||||
| Puissance Maximal (Pmax) |
|
|||||
| Tension à Puissance Maximal (Vmax) |
|
|||||
| Courant à Puissance Maximum (Cmax) |
|
|||||
| Tension Circuit Ouvert (Voc) |
|
|||||
| Courant Circuit Court (lsc) |
|
|||||
| Efficacité Module |
|
|||||
| Tolérance de Puissance (+) |
|
|||||
| Conditions de Test Standard (STC): masse d'air AM 1,5, irradiation 1000W/m2, température des cellules 25°C | ||||||
| Caractéristique Electrique en NOCT | ||||||
| Température | 44±2 °C | |||||
| Température Nominale des Cellules (NOTC): 800W/m2, AM 1,5, vitesse du vent 1m/s, température ambiante 20°C | ||||||
| Caractéristique de Température | ||||||
| Gamme de Température | -40~85 °C | |||||
| Coefficient Température (Pmax) | -0,26 %/°C | |||||
| Coefficient Température (Voc) | -0,24 %/°C | |||||
| Coefficient Température (lsc) | 0,04 %/°C | |||||
| Caractéristiques Maximum | ||||||
| Tension Maximale du Système | 1500 V | |||||
| Caractéristiques Fusibles en Série | 30 A | |||||
| Caracteristiques Matériel | ||||||
| Dimension Module | 2384x1303x35 mm | |||||
| Poids | 38,7 kg | |||||
| Taille Cellule | 210×105 mm | |||||
| Numéro Cellule | 132 | |||||
| Type de Verre | Traitement Anti-Reflet | |||||
| Epaisseur du Verre | 2 mm | |||||
| type de Trame | Aluminium Anodisé | |||||
| Protection Boîte de Jonction | IP 68 | |||||
| Type de Connecteur | MC4 | |||||
| Section de Câble | 4 mm2 | |||||
| Longeur Câble | 300 mm | |||||
| Télécharger le PDF du Fabricant |
HJT 2.0 Technology
Combining the gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power.
-0.26%/°C Pmax temperature coefficient
More stable power generation performance and is even better in hot climates.
SMBB design with Half-Cut Technology
Shorter current transmission distance, less resistive loss, and higher cell efficiency.
Up to 90% Bifaciality
Natural symmetrical bifacial structure brings more energy yield from the backside.
Sealing with PIB-based sealant
Stronger water resistance, and greater air impermeability to extend module lifespan.
TN Solar —— Brighten up Your Life with Our Incredible PV Modules

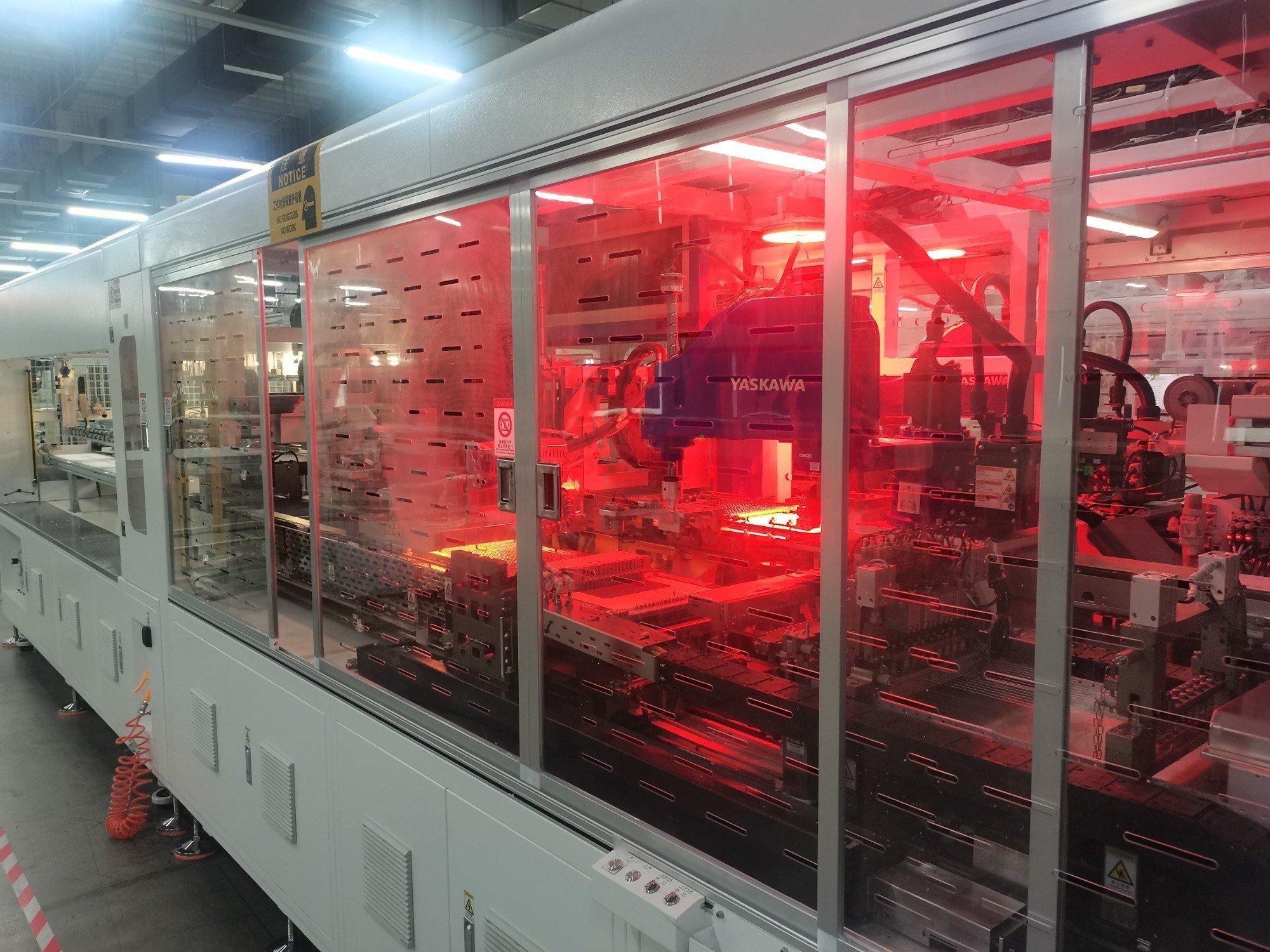

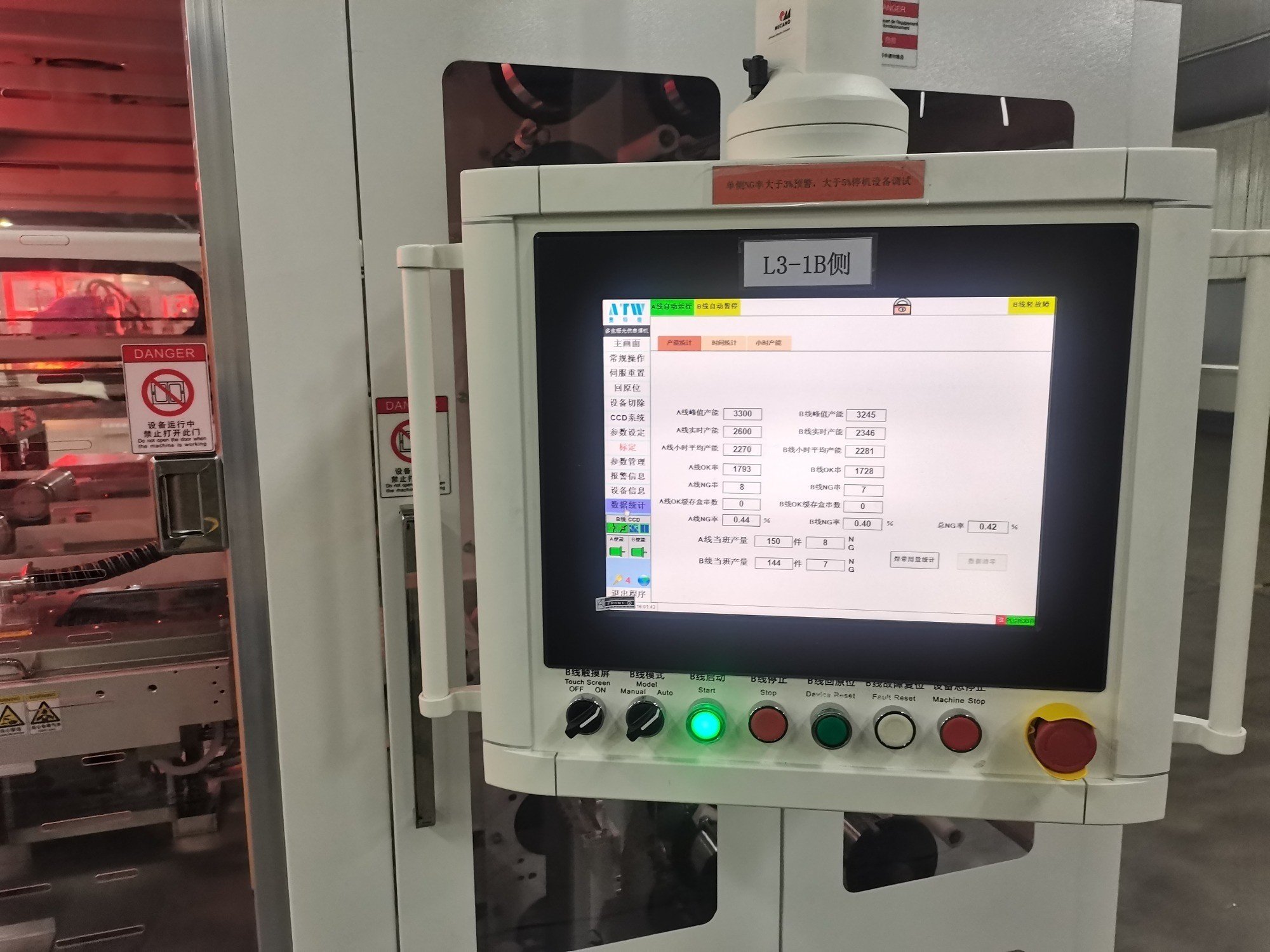

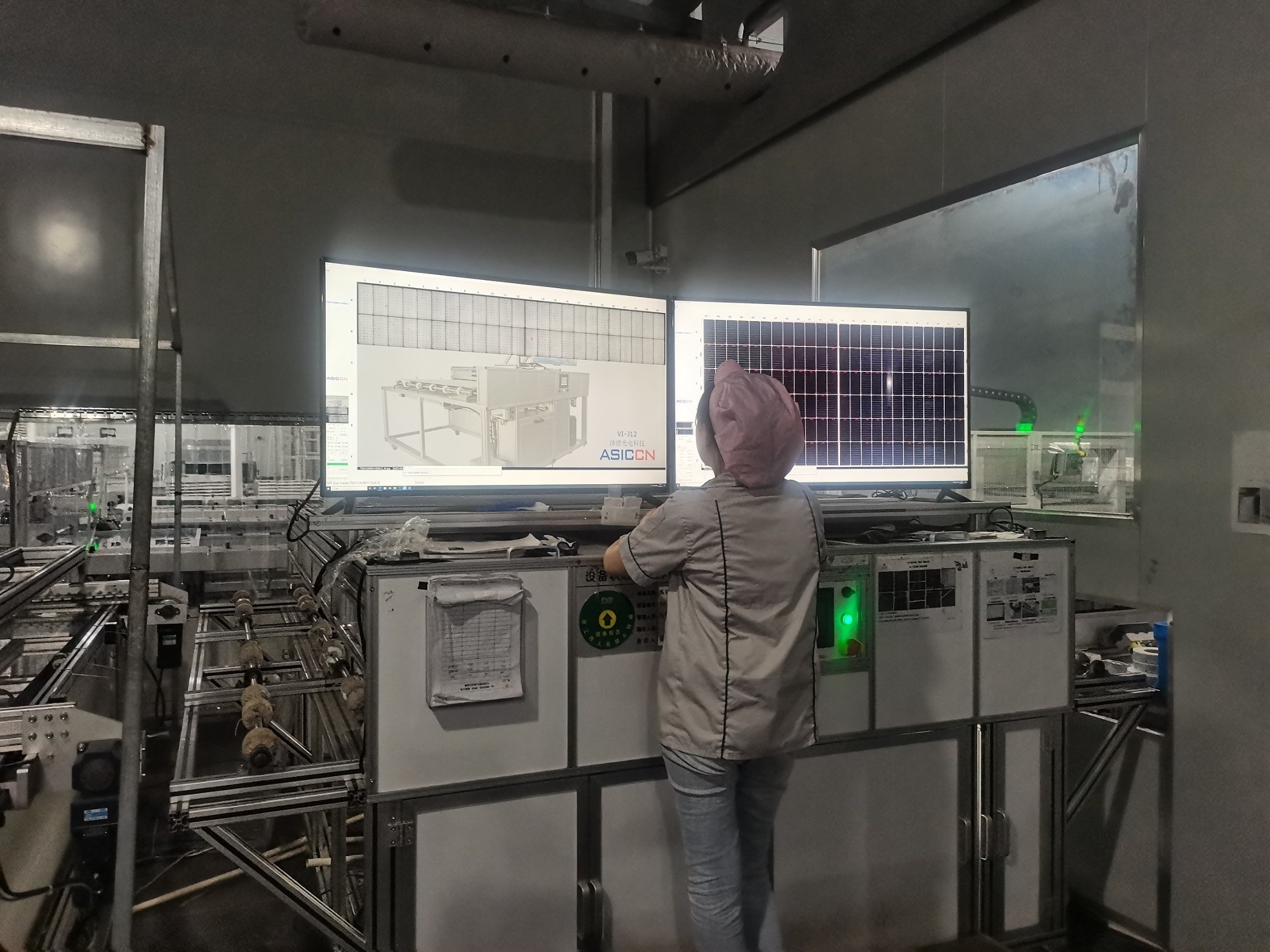

Production Base
Our modules are so efficient that they make the sun jealous.
Our modules are as sleek as a stealthy ninja. With their all-black design, they'll seamlessly blend into your roof.
When you choose TN Solar, you're not just getting top-notch modules, you're also getting exceptional customer service. Our team of solar superheroes is here to guide you through every step of the process, from installation to maintenance.
Certifications
TN Solar Co., Limited
Remarque: Votre demande sera envoyée directement à TN Solar Co., Limited.
TN Solar is an enterprise specialized in the integrated photovoltaic products, such as solar panels and solar cells .
We are specializing in making 20~200W small-size panels.
Our core products include PERC, TOPCON, HJT, baficial 400W-750w, world cheapest, A grade, high efficiency, up to 20bb solar cells.
We also offer a comprehensive warranty and after-sales service to ensure that our customers are fully satisfied with their purchase.
We are also committed to providing our customers with fast delivery, excellent customer service and quality assurance.We highly value our customers and provide them with unbeatable customer service as well as unbeatable prices.
Our Capacity is :
5 lines for solar cells, 250,000 pcs/day.
5 lines for solar panels, one 40 ft container/day.

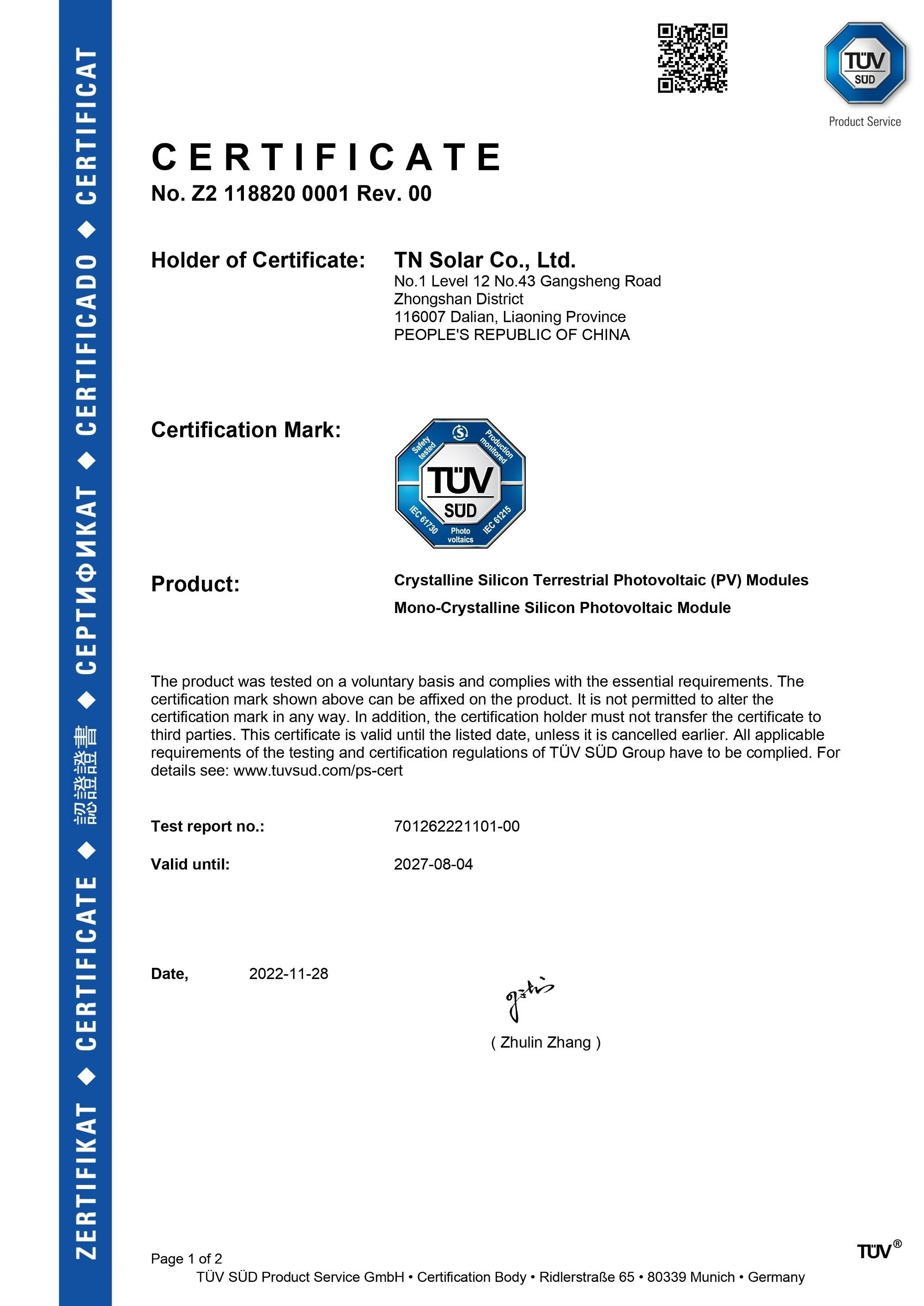

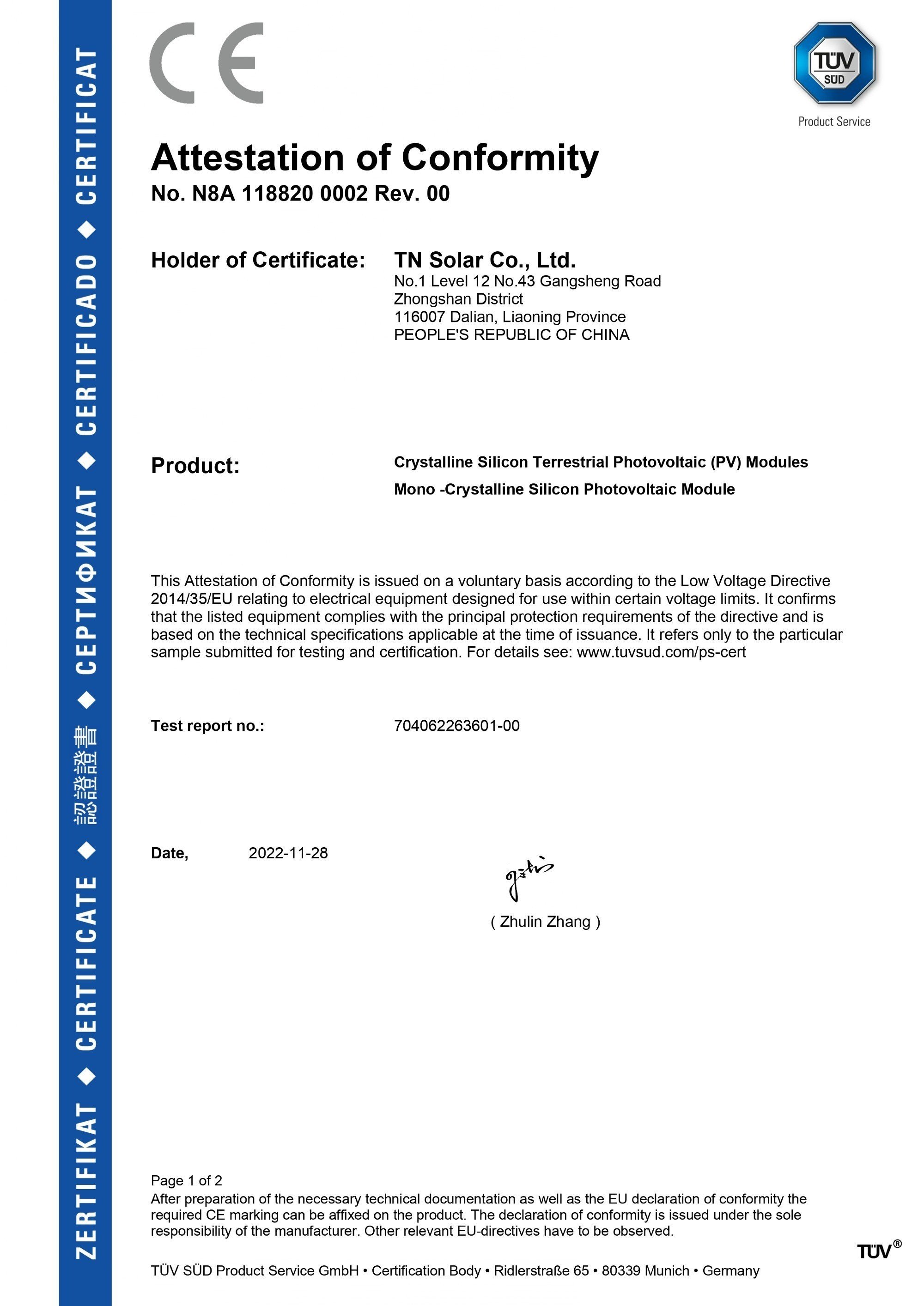

Certificates
IEC61215 & IEC61730
fire rating Class A
