SNG Elite HC Mono 585-605W Silver Frame

Sungi Solar China Factory Co., Ltd.

Technologie:	HJT
Gamme de Puissance:	585 ~ 605 Wp
Région:	Chine

Contacter le Fabricant

Remarque: Votre demande sera envoyée directement à Sungi Solar China Factory Co., Ltd..

Description:

Higher performance, higher reliability, and greater (electrical) resilience.
Minimizes the risk of degradation caused by PID phenomena by optimizing cell production technology and material control.
Industry-leading power output warranty:
25 years / 89.4 %
30 years / 87.4 %

Information de Produit
Profil d'entreprise

Caractéristiques du Produit

Type

Monocristallin

No. de Modèle

SNG 585

SNG 590

SNG 595

SNG 600

SNG 605

Garantie

30 Années

Garantie de Puissance

25 ans à 89,4% de puissance sortie, 30 ans à 87,4% de puissance sortie

Caractéstique Electrique (STC)

Puissance Maximal (Pmax)

585 Wp

590 Wp

595 Wp

600 Wp

605 Wp

Tension à Puissance Maximal (Vmax)

33,8 V

34 V

34,2 V

34,4 V

34,6 V

Courant à Puissance Maximum (Cmax)

17,31 A

17,35 A

17,4 A

17,45 A

17,49 A

Tension Circuit Ouvert (Voc)

40,9 V

41,1 V

41,3 V

41,5 V

41,7 V

Courant Circuit Court (lsc)

18,37 A

18,42 A

18,47 A

18,52 A

18,57 A

Efficacité Module

20,67 %

20,84 %

21,02 %

21,2 %

21,37 %

Tolérance de Puissance (+)

+ 3 %

Tolérance de Puissance (-)

- 3 %

Conditions de Test Standard (STC): masse d'air AM 1,5, irradiation 1000W/m², température des cellules 25°C

Caractéristique Electrique en NOCT

Tension à Puissance Maximal (Vmax)

31,65 V

31,8 V

31,94 V

32,09 V

32,24 V

Courant à Puissance Maximum (Cmax)

14,03 A

14,09 A

14,15 A

14,21 A

14,27 A

Tension Circuit Ouvert (Voc)

38,52 V

38,72 V

38,92 V

39,11 V

39,31 V

Courant Circuit Court (lsc)

14,9 A

14,94 A

14,98 A

15,02 A

15,06 A

Température

45±2 °C

Température Nominale des Cellules (NOTC): 800W/m², AM 1,5, vitesse du vent 1m/s, température ambiante 20°C

Caractéristique de Température

Gamme de Température

-40~85 °C

Coefficient Température (Pmax)

-0,35 %/°C

Coefficient Température (Voc)

-0,28 %/°C

Coefficient Température (lsc)

0,048 %/°C

Caractéristiques Maximum

Tension Maximale du Système

1500 V

Caractéristiques Fusibles en Série

30 A

Caracteristiques Matériel

Dimension Module

2172x1303x35 mm

Poids

30,5 kg

Taille Cellule

210×105 mm

Numéro Cellule

120

Type de Verre

Traitement Anti-Reflet

Epaisseur du Verre

3,2 mm

type de Trame

Aluminium Anodisé

Protection Boîte de Jonction

IP 68

Type de Connecteur

MC4

Section de Câble

4 mm²

Longeur Câble

1400 mm

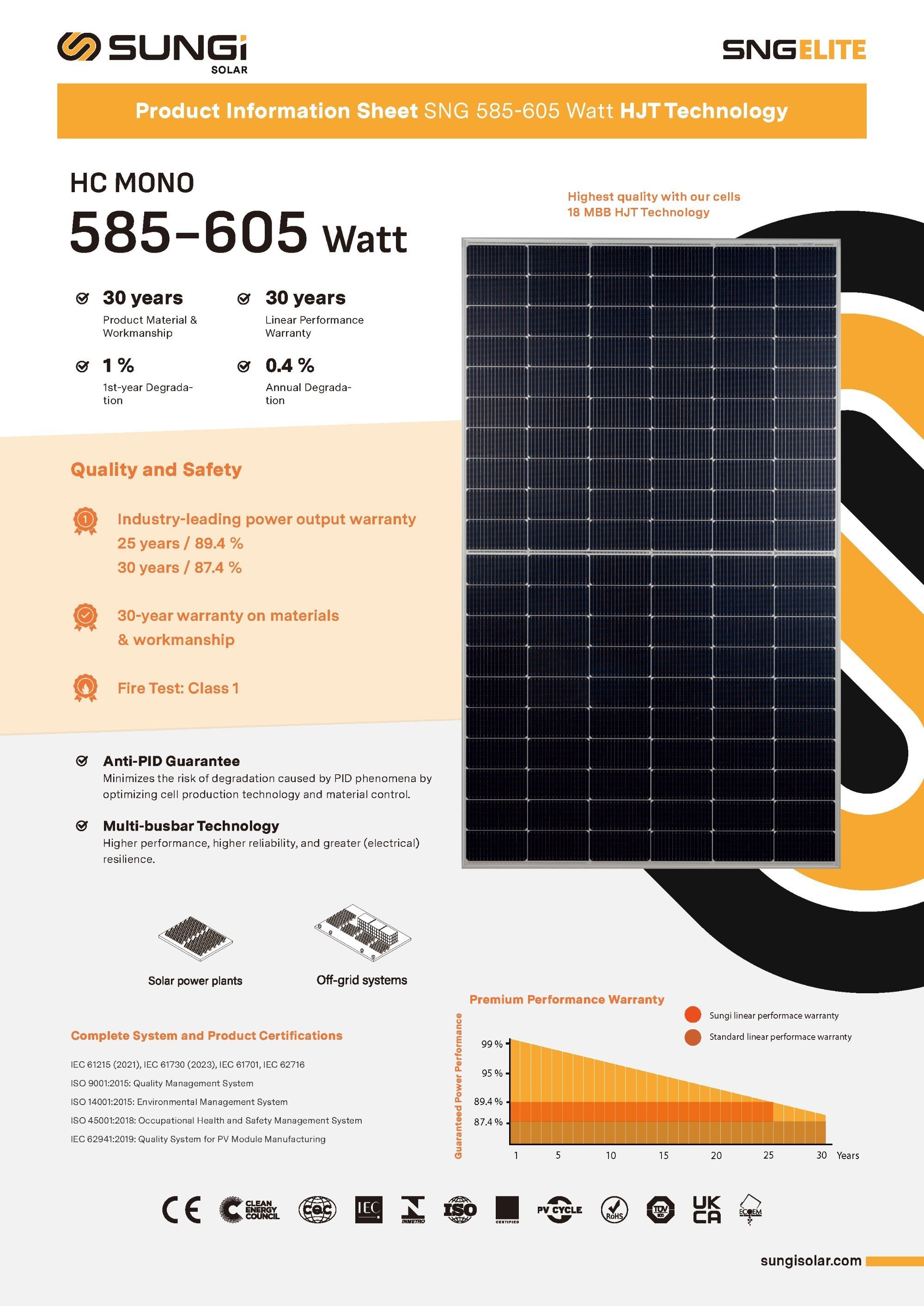

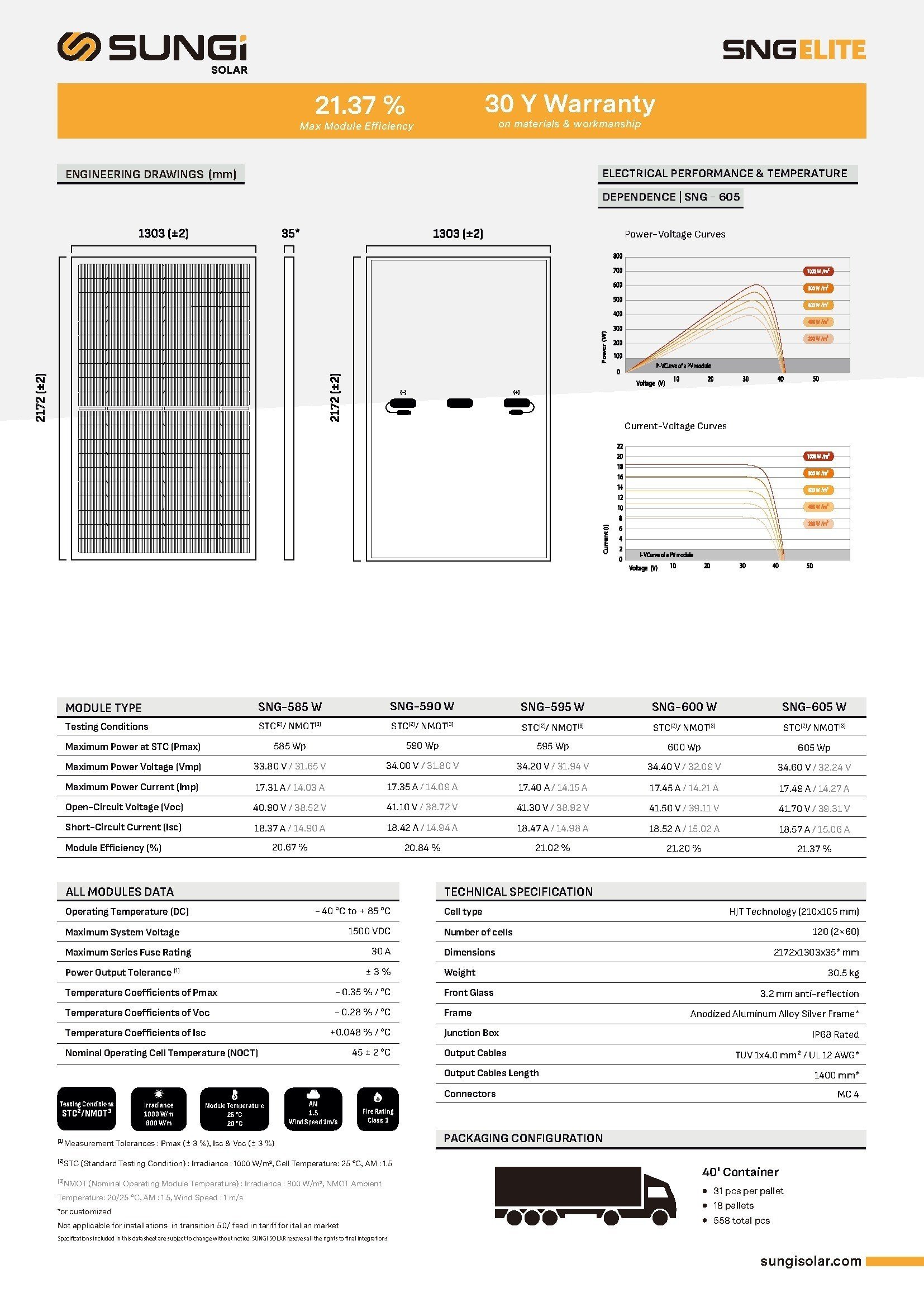

PDF

Télécharger le PDF du Fabricant

New Generationof photovoltaics

Sungi Solar’s technologies represent the forefront of solar innovation, driving the industry toward higher efficiencies and greater reliability. With advanced designs and cutting-edge materials, we deliver solutions that redefine what’s possible in renewable energy.

Our commitment to excellence ensures that every panel is built to perform, last, and adapt to the challenges of a rapidly evolving world. Choose Sungi Solar to harness the power of innovation and lead the transition to a sustainable future.

Quality and Innovative Production

We are a pioneering company specializing in integrated photovoltaic products.

Since 2006, we have established ourselves as a leading solar cell manufacturer, continuously improving efficiency and performance through cutting-edge technologies.

Our production network spans across the United States, Japan, Europe, and Southeast Asia, supported by ongoing investments in advanced equipment and modern management systems. A professional production team, a dedicated R&D unit, and a highly skilled sales force collaborate to uphold Sungi Solar’s strict quality standards. From real-time monitoring to rigorous product testing, every process is meticulously controlled to guarantee the highest level of excellence and efficiency.

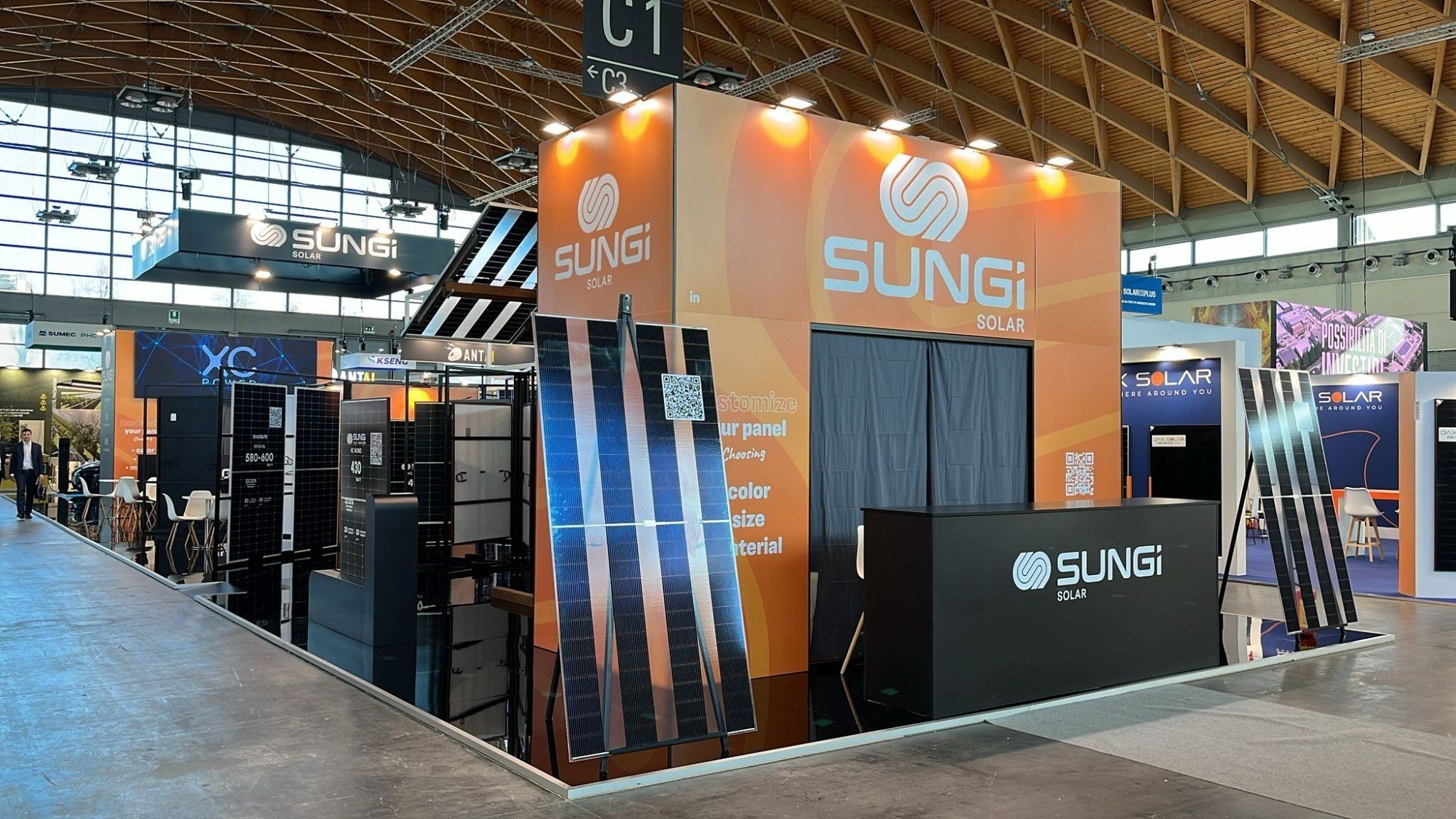

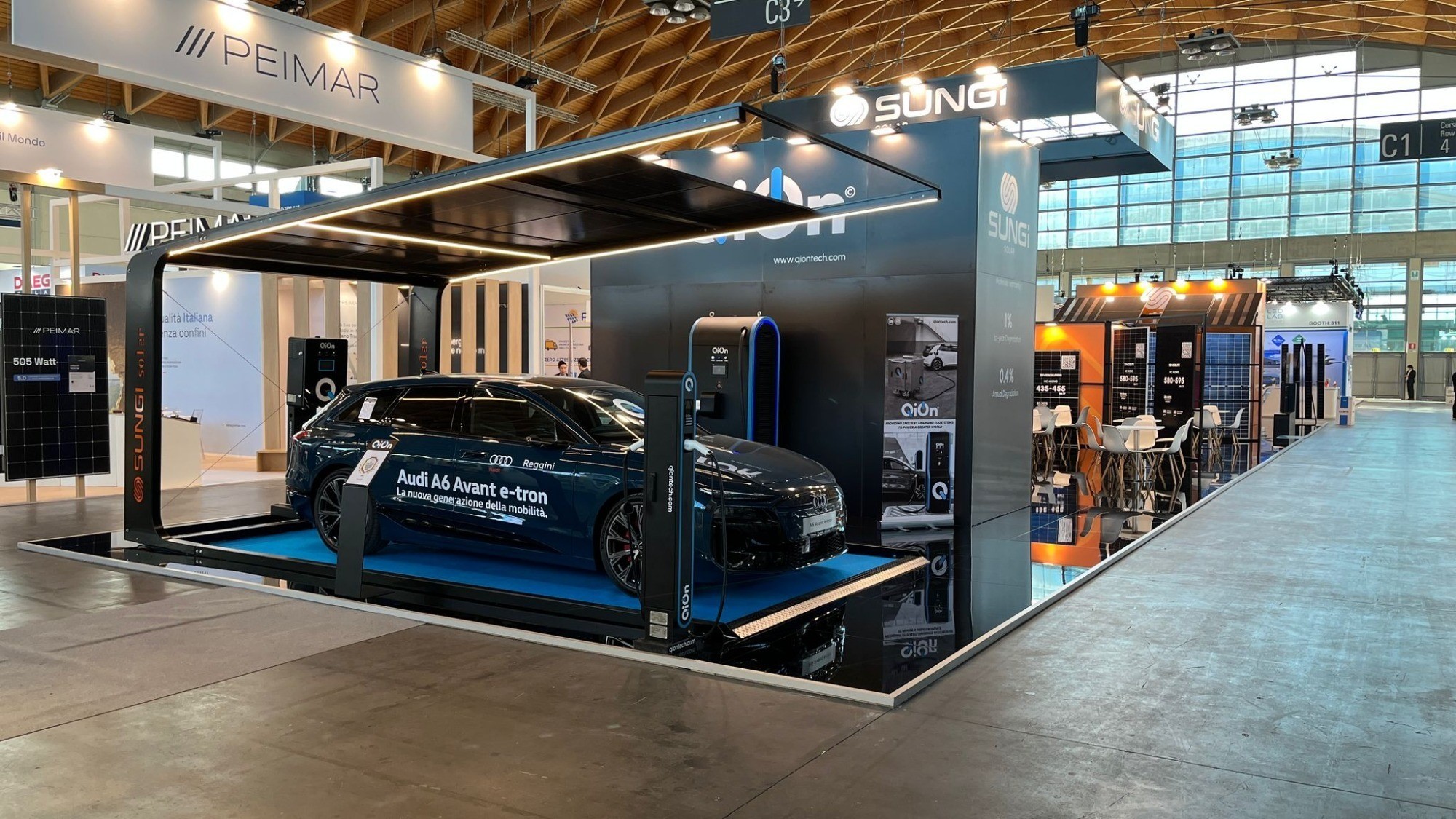

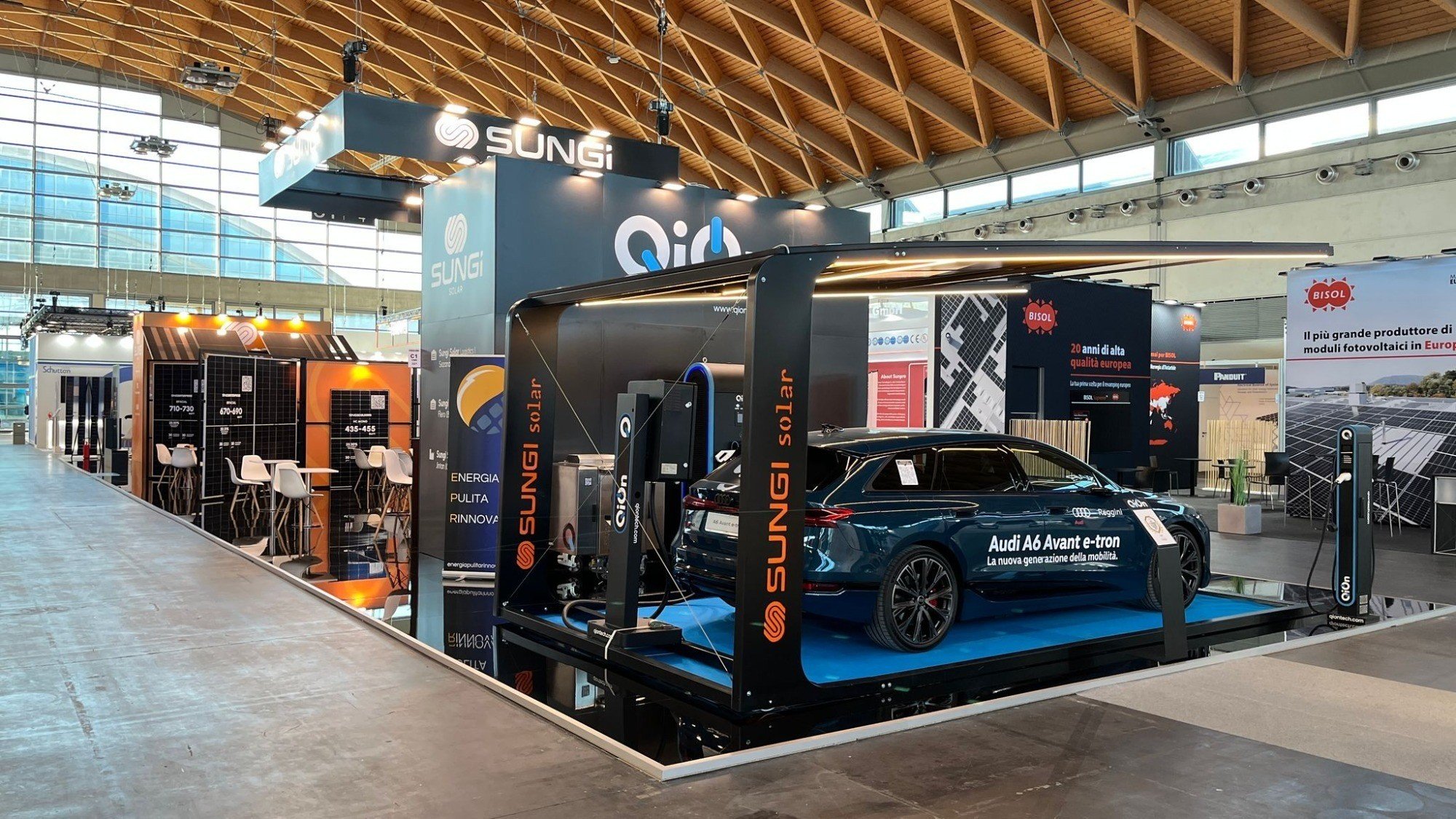

Expo
