AOX-132G12HC 430-460W

Jiangsu Ocean Solar Co., Ltd.

Prix par Pièce
Quantité Minimale	740-2999 Pcs	3000-6999 Pcs
Délai de livraison	21 days	21 days
AOX-72M10HC590W	€44,7	€44,2

Remarque: Votre demande sera envoyée directement à Jiangsu Ocean Solar Co., Ltd..

TOPCon, Type N

580-615 Wp

28 kg

12 Années

1 ans à 99 %, 30 ans à 87,4 %

22,4 % - 23,8 %

2278x1134x30 mm

3,2 mm

0,30 %/°C

Technologie

TOPCon, Type N

Gamme de Puissance

430 - 460 Wp

Région

Chine

Poids

20 kg

Garantie

12 Années

Garantie de Puissance

1 ans à 99 %, 30 ans à 87,4 %

Efficacité Panneau

21,5 % - 23 %

Dimension

1762x1134x30 mm

Epaisseur du Verre

3,2 mm

Coefficient Température (Pmax)

-0,30 %/°C

Numéro Cellule

Prix:

A partir de

€0,0801 / Wp

Prix par Pièce Prix par Pièce
Quantité Minimale	936-4999 Pcs	5000-9999 Pcs	10000+ Pcs
Délai de livraison	28 days	28 days	28 days
AOX-144M10RHC450W	€36,8	€36,4	€36,1

Contacter le Fabricant

Remarque: Votre demande sera envoyée directement à Jiangsu Ocean Solar Co., Ltd..

Fewer micro-cracks, PID resistant, and endure harsh conditions.
SMBBfor trapping, lower resistance, better collection.
Low LCOE, reduced BOS cost, quick payback. More harvest with N-type TOPCon. Compatible, efficient container use cuts freight.

Information de Produit
Profil d'entreprise

Caractéristiques du Produit

Type

Monocristallin

No. de Modèle

AOX-144M10RHC430W

AOX-144M10RHC435W

AOX-144M10RHC440W

AOX-144M10RHC445W

AOX-144M10RHC450W

AOX-144M10RHC455W

AOX-144M10RHC460W

Garantie

12 Années

Garantie de Puissance

1 ans à 99 %, 30 ans à 87,4 %

0,42 %

Tolérance de Puissance

0 ~ +1.12 %

Caractéstique Electrique (STC)

Puissance Maximal (Pmax)

430 Wp

435 Wp

440 Wp

445 Wp

450 Wp

455 Wp

460 Wp

Tension à Puissance Maximal (Vmax)

42,2 V

42,4 V

42,6 V

42,8 V

43 V

43,2 V

43,4 V

Courant à Puissance Maximum (Cmax)

10,19 A

10,26 A

10,33 A

10,4 A

10,47 A

10,54 A

10,6 A

Tension Circuit Ouvert (Voc)

50,2 V

50,4 V

50,6 V

50,8 V

51 V

51,2 V

51,4 V

Courant Circuit Court (lsc)

10,76 A

10,83 A

10,91 A

10,98 A

11,06 A

11,12 A

11,19 A

Efficacité Module

21,5 %

21,8 %

22 %

22,3 %

22,5 %

22,8 %

23 %

Caractéristique Electrique en NOCT

Puissance Maximal (Pmax)

327 Wp

330 Wp

334 Wp

337 Wp

340 Wp

344 Wp

347 Wp

Tension à Puissance Maximal (Vmax)

39,4 V

39,6 V

39,8 V

40 V

40,2 V

40,4 V

40,6 V

Courant à Puissance Maximum (Cmax)

8,3 A

8,33 A

8,39 A

8,43 A

8,46 A

8,52 A

8,55 A

Tension Circuit Ouvert (Voc)

47,4 V

47,6 V

47,8 V

48 V

48,2 V

48,4 V

48,6 V

Courant Circuit Court (lsc)

8,76 A

8,8 A

8,86 A

8,9 A

8,93 A

8,99 A

9,03 A

Température

45±2 °C

Gamme de Température

-40 - +85 °C

Coefficient Température (Pmax)

-0,30 %/°C

Coefficient Température (Voc)

-0,25 %/°C

Coefficient Température (lsc)

0,046 %/°C

Tension Maximale du Système

1500 V

Caractéristiques Fusibles en Série

25 A

Dimension Module

1762x1134x30 mm

Poids

20 kg

Numéro Cellule

144

Type de Verre

Traitement Anti-Reflet, Tempéré

Epaisseur du Verre

3,2 mm

Type d'encapsulation

EVA

Type de Cadre

Aluminium Anodisé

Nb de Diodes de Dérivation

Protection Boîte de Jonction

IP 68

Type de Connecteur

MC4

Section de Câble

4 mm²

Longeur Câble

350 mm

Télécharger le PDF du Fabricant

Fiche Technique

About US

Ocean Solar is a high-tech enterprise focused on producing high-efficiency monocrystalline and polycrystalline solar modules, which serve domestic and overseas installers, distributors, and factories engaged in off-grid and on-grid solar energy systems. At the same time, we provide high-quality raw materials and one-stop service for overseas solar panel manufacturers to optimize their supply chains.

We were established in 2012, committed to producing solar panels for more than 10 years, with mature production technology and a professional R&D team.

The head office of the company is located in Jincheng Town, Jintan District, Changzhou City, Jiangsu Province. The sales team is located in Changzhou, dedicated to developing overseas markets. The second plant is in Ma'anshan, Anhui Province, with an annual production capacity of 500MW. We can provide 400W-700W solar panels, as well as provide customers with personalized customized services.

Since its establishment, Ocean solar panels have been exported to Australia, New Zealand, Spain, Germany, Ukraine, Russia, Vietnam, Thailand, the Philippines, South Africa, China, and many other countries and regions. So far, the total export exceeds 1GW of solar panels.

With the concept of "World Shines Because of You", we provide customers with high-quality, stable, reliable, and price-competitive products, and establish long-term cooperation and win-win business. To reach peak carbon dioxide emissions, achieve carbon neutrality, and develop green energy as soon as possible, Ocean Solar will fully cooperate with global customers to create a better future.

Our Products

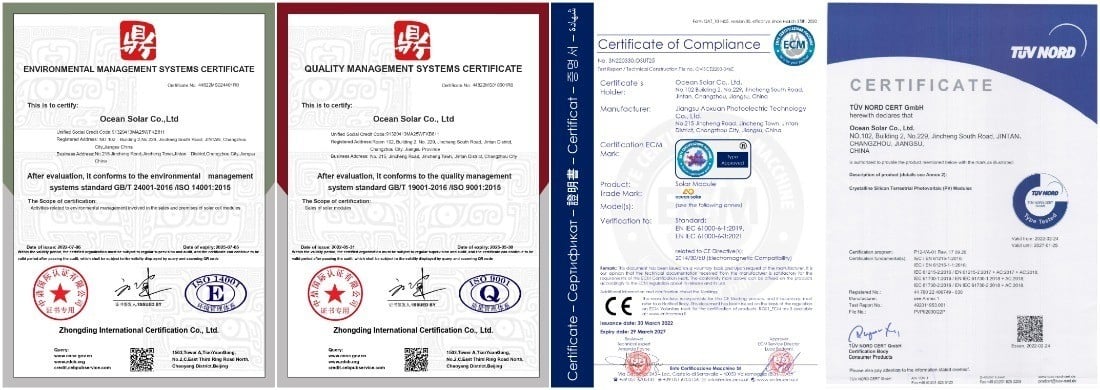

Certificates

Projects

Jiangsu Ocean Solar Co., Ltd.

: Click to show company phone
: https://oceansolarcn.com
: Chine
: No. 8, Zhixi Industrial Park, Zhixi Town, Jintan District, Changzhou City, Jiangsu Province, 213000

Effectif: 200

Contacter le Fabricant

Remarque: Votre demande sera envoyée directement à Jiangsu Ocean Solar Co., Ltd..

Cristallin

Production (MW)/: MWp

Monocristallin, Polycristallin

Gamme de Puissance(Wp): 150-750

Contacts Utiles

Jacky

Sylvia

INFO

Ada

Jasmine

Jaya

Description de l'entreprise

Ocean Solar is one high-tech enterprise focusing on the production of high-efficiency monocrystalline and polycrystalline solar modules, serves domestic and overseas installers, distributors, and factories engaged in off-grid and on-grid solar energy systems. Providing customers with high-efficiency, safe, reliable, beautiful, and price-competitive solar panels.

Established in 2012, Ocean Solar has been committed to the production of solar panels for more than 10 years with mature production technology, and a professional R & D team. The head office of the company is located in Jincheng Town, Jintan District, Changzhou City, Jiangsu Province. The second plant is located in Ma'anshan, Anhui Province, with an annual production capacity of 1 GW. We can provide 400W-730W solar panels, as well as provide customers with personalized customized services (OEM/ODM).

Since its establishment, Ocean solar panels have been exported to Spain, Italy, Germany, Greece, Ukraine, Russia, Vietnam, Thailand, the Philippines, South Africa, Australia, New Zealand, China, and more than 30 countries and regions. So far, the total export exceeds 2GW solar panels. With the concept of "World Shines Because of You", we provide customers with high-efficiency, safe, reliable, beautiful, and price-competitive solar products, and establish long-term cooperation and win-win business. To reach peak carbon dioxide emissions, achieve carbon neutrality, and the development of green energy as soon as possible, Ocean Solar will fully cooperate with global customers to create a better future.
