Price per Pièce
|
|||
Minimum Order | 60-199 Pièces | 200-999 Pièces | 1000+ Pièces |
Lead Time | 5 Jours | 5 Jours | 7 Jours |
RT150WM | €96,0 | €93,1 | €91,2 |
Technologie: | -- |
---|---|
Gamme de Puissance: | 150 Wp |
Région: |
Chine
![]() |

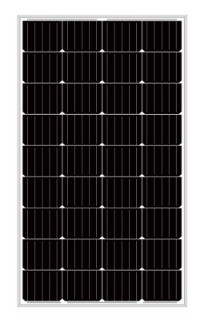

Monocrystalline solar PV module
EVA encapsulated and glass foil sandwich laminated
Sandblasted anodizing Aluminum frame
3.2mm tempered Glass
Withstands hail up to 25mm diameter, 80 Km/h wind
Wide temperature range of -40 to +85 ℃
Nominal operating cell temperature (NOCT) of 47℃
Type | Monocristallin | |
---|---|---|
No. de Modèle |
|
|
Caractéstique Electrique (STC) | ||
Puissance Maximal (Pmax) |
|
|
Tension à Puissance Maximal (Vmax) |
|
|
Courant à Puissance Maximum (Cmax) |
|
|
Tension Circuit Ouvert (Voc) |
|
|
Courant Circuit Court (lsc) |
|
|
Efficacité Module |
|
|
Tolérance de Puissance (+) |
|
|
Tolérance de Puissance (-) |
|
|
Conditions de Test Standard (STC): masse d'air AM 1,5, irradiation 1000W/m2, température des cellules 25°C | ||
Caractéristique Electrique en NOCT | ||
Température | 47±0 °C | |
Température Nominale des Cellules (NOTC): 800W/m2, AM 1,5, vitesse du vent 1m/s, température ambiante 20°C | ||
Caractéristique de Température | ||
Gamme de Température | -40~85 °C | |
Coefficient Température (Pmax) | -0,23 %/°C | |
Coefficient Température (Voc) | -0,33 %/°C | |
Coefficient Température (lsc) | 0,1 %/°C | |
Caracteristiques Matériel | ||
Dimension Module | 1230x665x35 mm | |
Poids | 8,8 kg | |
Numéro Cellule | 36 | |
Type de Verre | Tempéré | |
Epaisseur du Verre | 3,2 mm | |
Type d'encapsulation | EVA | |
type de Trame | Aluminium Anodisé | |
No. de Diodes Bypass | 2 | |
Protection Boîte de Jonction | IP 67 | |
Type de Connecteur | MC4 | |
Section de Câble | 4 mm2 | |
Longeur Câble | 1000 mm | |

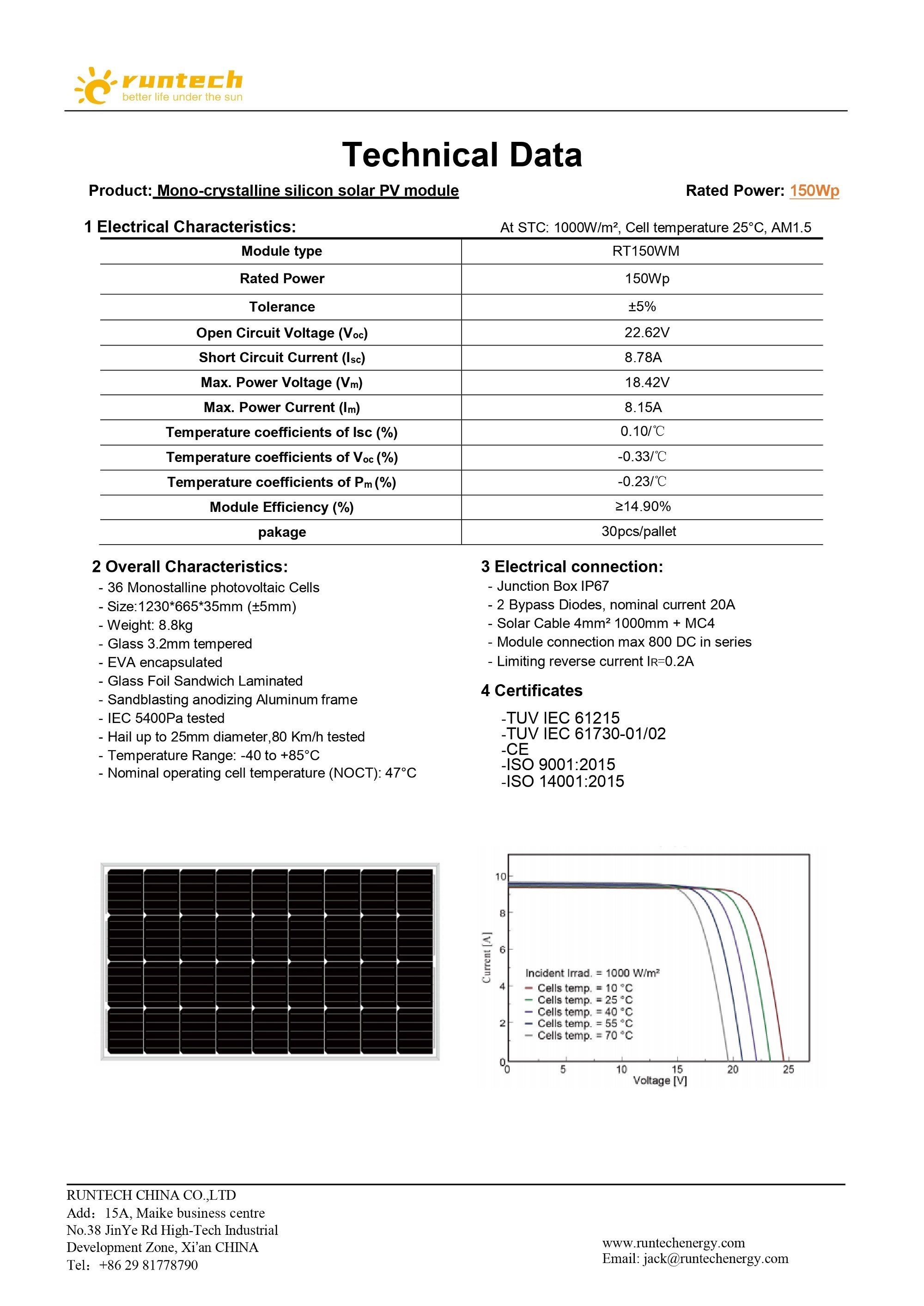

Télécharger le PDF du Fabricant |
Runtech China have been engaged in New Energy included solar plant, solar off grid, and power generation more than 10 years since 2014 which is factory in Changzhou City, Jiangsu province and specialized to produce the 5W-600W range of solar module. Runtech accept the OEM / ODM business upon the 200MW ability annual.
Meanwhile as a leading trader of solar modules and PV project developer installer. With more than 400MW of premium quality modules ( CSI, Trina, Longji, JA AND Jinko Etc) deployed around the world and more Than 100MW solar plant were built by Runtech In China every year. The solar module what Runtech Energy provided all are one of the most bankable Tier one solar module in the world。
